MAA084DXA03 Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

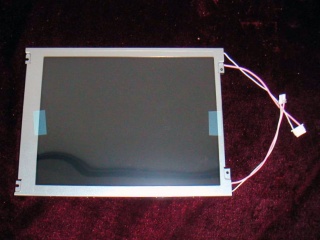

MAA084DXA03 is a 8.4" diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: Lamp Repaceable, Life ≥ 50K hours, 180° Reverse, 6/8 bit, Matte . Based on its features, we recommend that this model be applied to Industrial etc.
Technical Data:
Part #：
MAA084DXA03
Brand：
MITSUBISHI ELECTRIC
Size：
8.4 inch"
Resolution：
1024×768
Interface：
8.4 inch
Technology：
Transmissive
Brightness：
300 cd/m² (Typ.)
Operating Tem：
-20 ~ 70 °C
Storage Tem：
-20 ~ 80 °C
